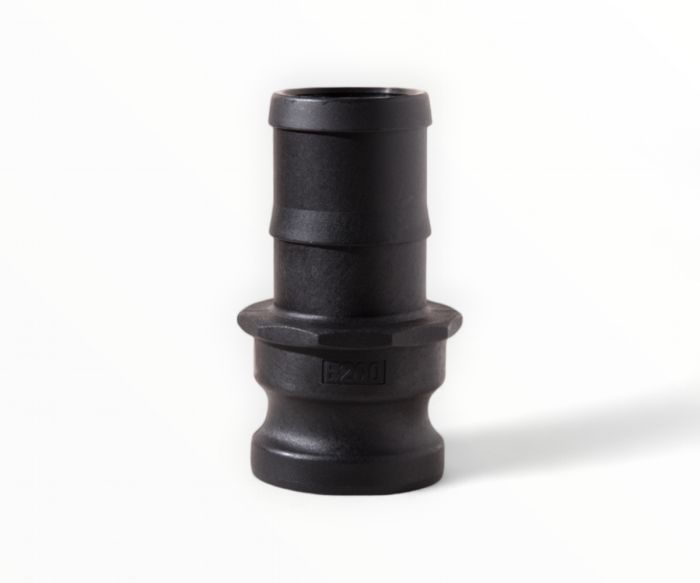

E-Type PP Camlock Coupling
E-Type PP Camlock Coupling provide reliable performance in a variety of fluid handling scenarios. These plastic camlock couplings offer excellent chemical resistance, durability and ease of use. Ideal for industrial applications, they provide safe, efficient connections for a variety of fluid transfer operations.
| Brand | Vortextank |
|---|---|
| Grade | PP & Nylon |
| Temperture | -30°C to 110°C |
| Color | Black |
| Dimension | From 1/2'' to 4'' |
| Type | E-Type Camlock Coupling |
Descritption:
E-Type PP Camlock Coupling are versatile solutions for efficient fluid transfer in a wide range of industries. Manufactured from high quality polypropylene, these couplings offer superior chemical resistance and durability. The E-Type design features a unique locking mechanism that ensures a tight, leak-free seal, making them ideal for camlock coupling applications in chemical transfer, water management and more. Their user-friendly design allows for quick release and easy installation, significantly reducing maintenance time. Available in various Camlock coupling sizes and compatible with various Camlock coupling specifications, these couplings offer flexibility and reliability in fluid handling systems.
Dimension:
| Inch | ΦA | ΦC | ΦE | ΦF | ΦG | L1 | L2 |
|---|---|---|---|---|---|---|---|
| 1/2 | 14.2 | 24.3 | 8 | 13 | 15 | 78 | 29 |
| 3/4*1/2 | 21.5 | 32 | 8 | 13 | 15 | 77 | 29 |
| 3/4 | 21.5 | 32 | 14.1 | 19 | 21.5 | 82 | 29 |
| 1 | 23.5 | 36.5 | 19 | 25 | 27.4 | 96 | 34 |
| 1-1/4 | 28 | 45.5 | 25.3 | 31.5 | 34.1 | 110 | 40 |
| 1-1/2 | 36 | 53.4 | 30.5 | 38 | 40.5 | 108.5 | 42.5 |
| 2 | 44 | 63 | 41.5 | 50 | 53.2 | 125 | 48.5 |
| 2-1/2 | 54 | 75.7 | 53 | 62.5 | 66 | 137 | 50 |
| 3 | 73 | 91.5 | 64.5 | 75.5 | 79.4 | 150 | 52 |
| 4 | 93.5 | 119.5 | 88 | 100 | 103.2 | 176 | 55 |
Structural Drawing:
Function:
- Enable quick and secure fluid connections
- Suitable for various industrial fluid transfer systems, including chemical and water treatment
- Provide reliable sealing solutions to prevent leaks
- Simplify installation and maintenance procedures, improving work efficiency
- Support customized applications to meet specific industry needs
Features:
- High-quality polypropylene material for durability and chemical stability
- Unique locking mechanism for reliable sealing performance
- Easy to operate and install, reducing maintenance time
- Suitable for various fluid transfer applications
- Available in multiple sizes to meet different system requirements

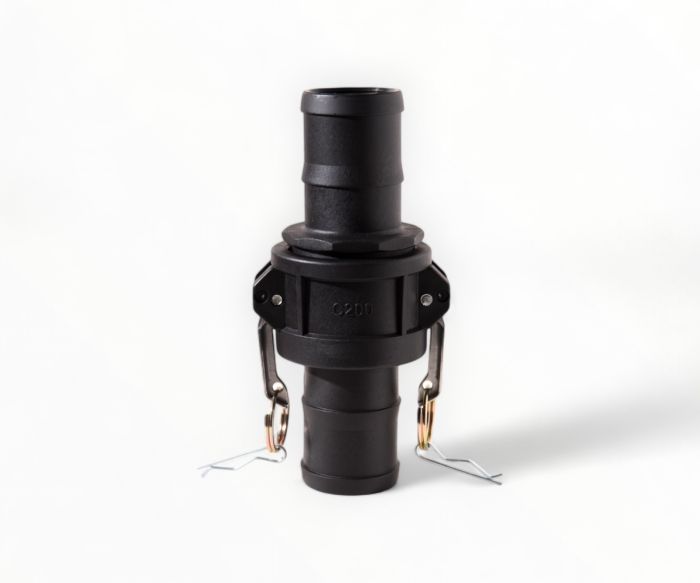

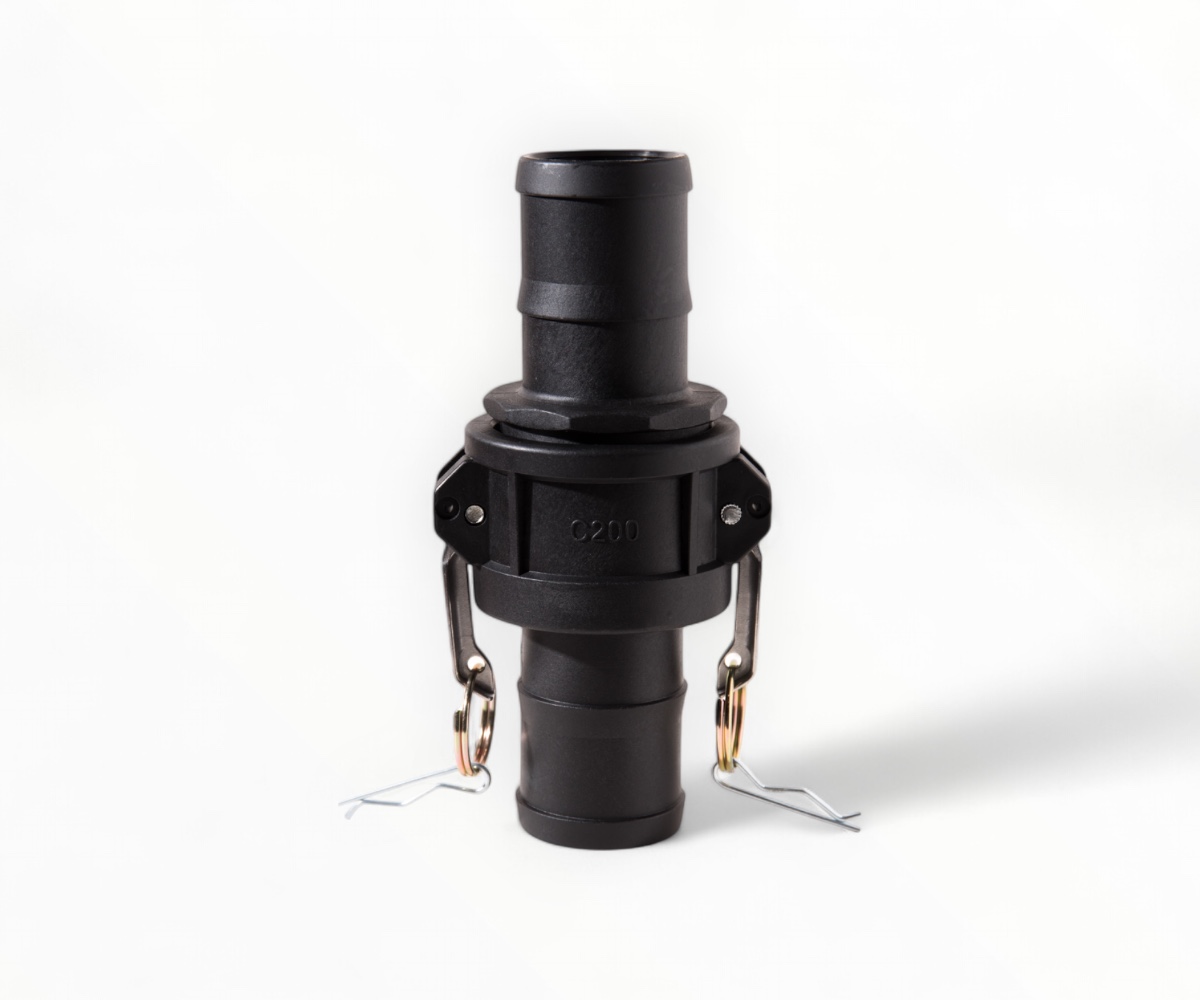

Detail Picture Show
