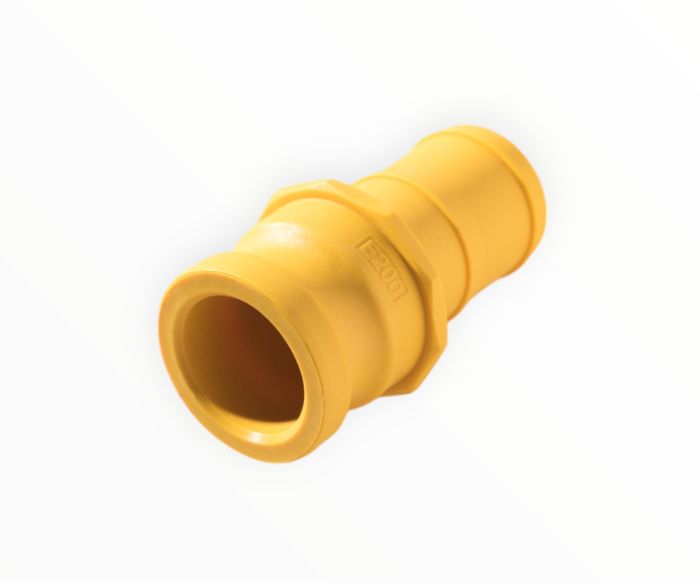

E-Type Nylon Camlock Coupling
E-Type nylon camlock couplings are innovative connection solutions designed for applications requiring high flexibility and fast operation. Combining lightweight design with reliability, they are ideal for dynamic industrial environments.
| Brand | Vortextank |
|---|---|
| Grade | PP & Nylon |
| Temperture | -30°C to 110°C |
| Color | Yellow |
| Dimension | From 1/2'' to 4'' |
| Type | E-Type Nylon Camlock Coupling |
Descritption:
E-Type Nylon Camlock Couplings represent the latest advancement in fluid transfer technology. These lightweight nylon camlock couplings are manufactured from advanced engineered plastics to provide superior strength and flexibility. Their unique design allows for quick connection and disconnection, making them ideal for portable tanks and temporary piping systems. E-Type couplings are particularly suitable for agricultural irrigation and water treatment applications, ensuring efficient fluid transfer. They are also fitted with dust caps and plugs to protect the couplings from contamination when not in use.
Dimension:
| Inch | ΦA | ΦC | ΦE | ΦF | ΦG | L1 | L2 |
|---|---|---|---|---|---|---|---|
| 1/2 | 14.2 | 24.3 | 8 | 13 | 15 | 78 | 29 |
| 3/4*1/2 | 21.5 | 32 | 8 | 13 | 15 | 77 | 29 |
| 3/4 | 21.5 | 32 | 14.1 | 19 | 21.5 | 82 | 29 |
| 1 | 23.5 | 36.5 | 19 | 25 | 27.4 | 96 | 34 |
| 1-1/4 | 28 | 45.5 | 25.3 | 31.5 | 34.1 | 110 | 40 |
| 1-1/2 | 36 | 53.4 | 30.5 | 38 | 40.5 | 108.5 | 42.5 |
| 2 | 44 | 63 | 41.5 | 50 | 53.2 | 125 | 48.5 |
| 2-1/2 | 54 | 75.7 | 53 | 62.5 | 66 | 137 | 50 |
| 3 | 73 | 91.5 | 64.5 | 75.5 | 79.4 | 150 | 52 |
| 4 | 93.5 | 119.5 | 88 | 100 | 103.2 | 176 | 55 |
Structural Drawing:
Function:
- Rapidly establish and dismantle temporary liquid transfer systems
- Ensure efficient liquid transfer in agriculture and water treatment industries
- Protect couplings from environmental contamination when not in use
- Adapt to environments with frequent equipment and piping configuration changes
- Enhance operational flexibility and efficiency
Features:
- Advanced engineered plastics for excellent strength and flexibility
- Innovative design for rapid coupling and uncoupling
- Lightweight structure for easy handling and transportation
- Equipped with dust protection devices
- Suitable for both temporary and permanent installations
