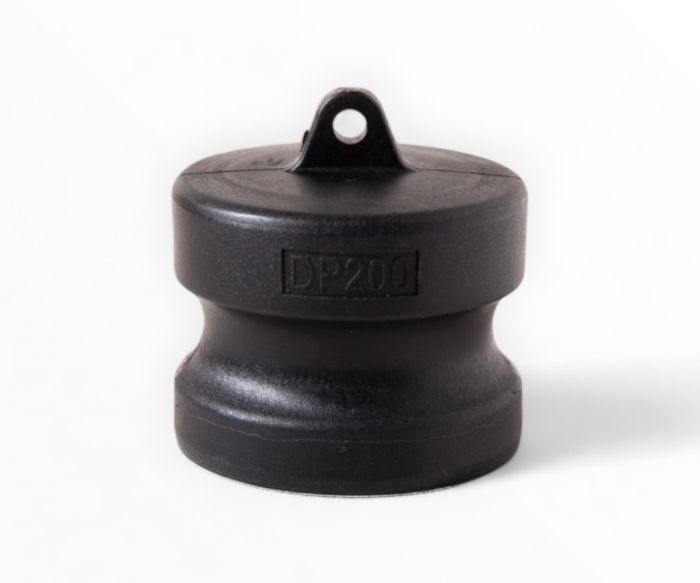

DP-Type PP Camlock Coupling
DP type PP camlock coupling are high performance dry disconnect quick disconnect couplings. These plastic camlock couplings are designed for non-drip operation, ensuring no fluid spillage during disconnection. They are ideal for applications requiring precise and clean fluid transfer.
| Brand | Vortextank |
|---|---|
| Grade | PP & Nylon |
| Temperture | -30°C to 110°C |
| Color | Black |
| Dimension | From 1/2'' to 4'' |
| Type | DP-Type Camlock Coupling |
Descritption:
DP type PP camlock couplings represent the pinnacle of camlock coupling technology. This dry disconnect design ensures no liquid spillage during connection and disconnection, making it ideal for handling expensive or hazardous fluids. Manufactured from advanced polypropylene, these couplings excel in a variety of camlock coupling applications, from precision chemical transfer to food grade liquid handling. Available in a range of camlock coupling sizes to meet different camlock coupling specifications. The heavy-duty construction of DP type couplings ensures reliable performance in demanding industrial environments. Their innovative design enhances safety and cleanliness, significantly reducing the risk of product loss and environmental contamination.
Dimension:
| Inch | ΦA | ΦC | L2 |
|---|---|---|---|
| 1/2 | 14.2 | 24.3 | 29 |
| 3/4 | 21.5 | 32 | 26 |
| 1 | 23.5 | 36.5 | 34 |
| 1-1/4 | 28 | 45.5 | 40 |
| 1-1/2 | 36 | 53.4 | 42.5 |
| 2 | 44 | 63 | 48 |
| 2-1/2 | 54 | 75.7 | 50.5 |
| 3 | 73 | 91.5 | 52 |
| 4 | 93 | 119.5 | 55.5 |
Structural Drawing:
Function:
- Enable clean and precise fluid transfer with no risk of spillage
- Suitable for high-demand industrial applications such as precision chemical and food-grade liquid handling
- Provide advanced sealing solutions to prevent product loss and environmental contamination
- Streamline operational processes while enhancing safety and efficiency
- Support customized applications to meet special industry cleanliness and precision standards
Features:
- Innovative dry disconnect design for drip-free operation
- Advanced polypropylene material for superior durability and chemical stability
- Available in multiple sizes to accommodate various system requirements
- Precision-engineered design for reliable sealing performance
- Suitable for demanding fluid transfer applications

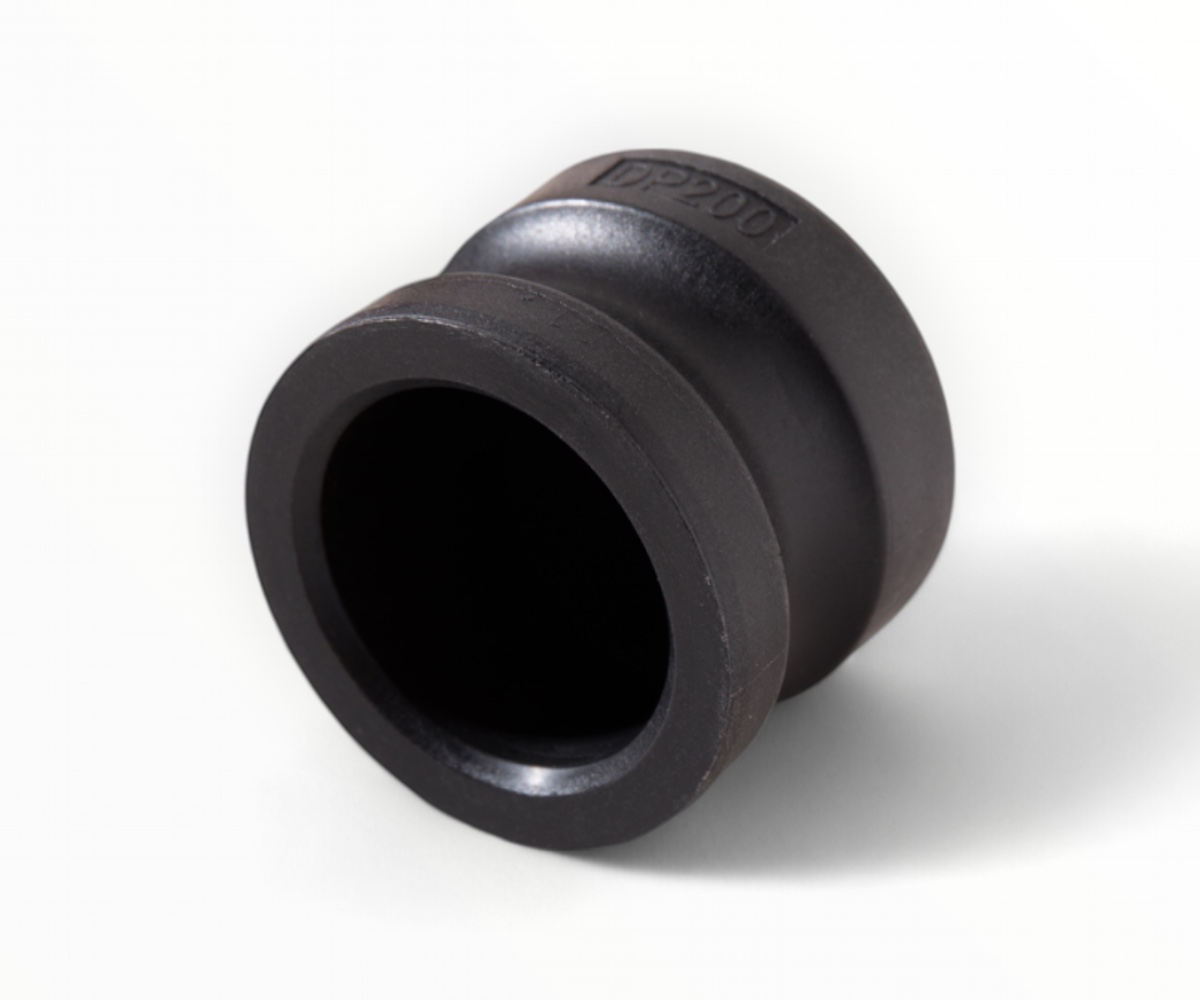

Detail Picture Show
