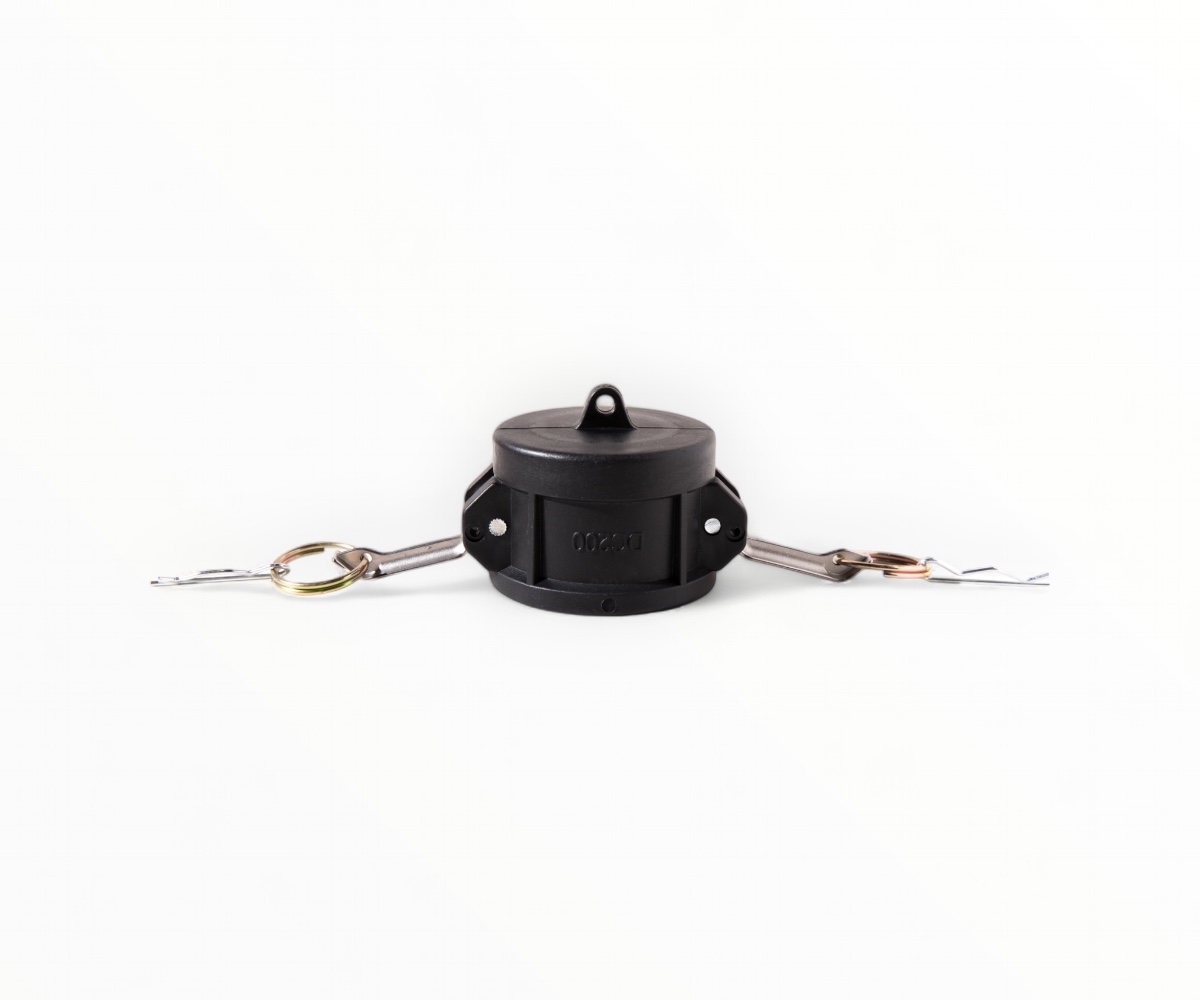

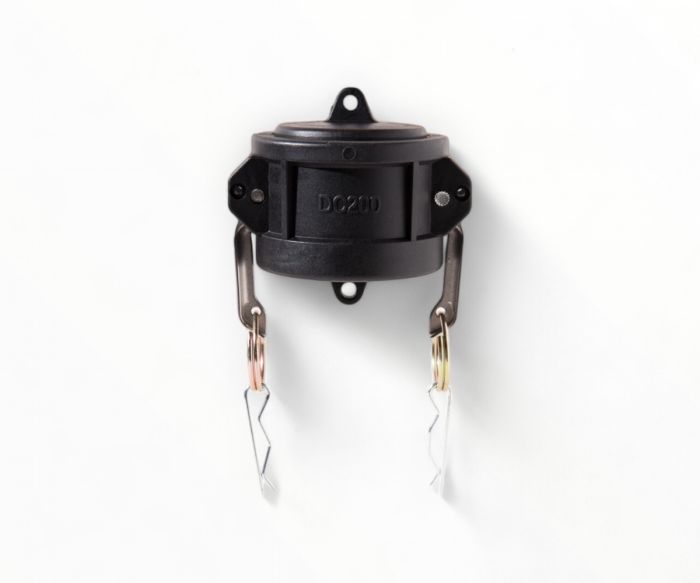

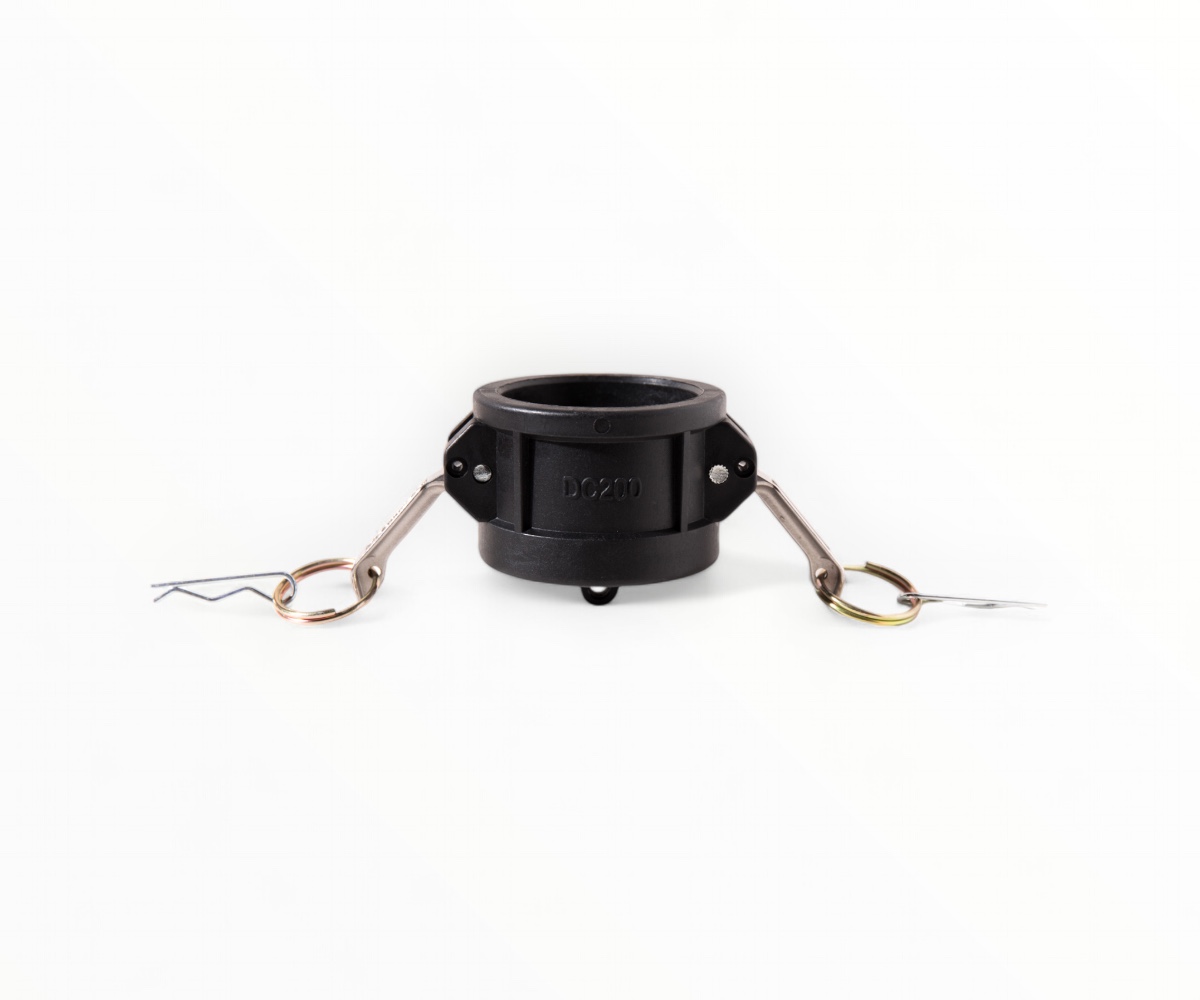

DC-Type PP Camlock Coupling

DC-Type PP Camlock Coupling

DC-Type PP Camlock Couplings are innovative double-lock quick connectors. These plastic camlock couplings offer superior safety and sealing performance for demanding fluid transfer applications. Their unique design ensures fast, reliable connections.

Descritption:

DC Type PP Camlock Couplings represent a significant innovation in Camlock coupling types. This double-locking design offers added safety, ideal for handling hazardous or sensitive fluids. Manufactured from high quality polypropylene, these couplings excel in a variety of camlock coupling applications, from chemical transfer to precision fluid handling. Available in a range of camlock coupling sizes to meet different camlock coupling specifications. The heavy duty construction of DC type couplings ensures durability in demanding industrial environments. Their unique design enhances safety while simplifying installation and maintenance procedures.

Dimension:

Inch ΦA ΦB L2
1/2 34.6 25.1 34
3/4 41.5 32.5 35
1 49 37.3 41
1-1/4 58.4 46 46
1-1/2 67 54 50
2 82 64 55.5
2-1/2 94.5 76.5 57.5
3 110 92.3 59
4 144 120 61

Structural Drawing:

DC-Type PP Camlock Coupling Drawing
A-type Camlock Coupling Drawing

Function:

  • Enable safe and efficient transfer of hazardous liquids
  • Suitable for demanding industrial applications such as chemical and precision fluid handling
  • Provide double sealing solutions to prevent leaks and contamination
  • Simplify installation and maintenance processes while enhancing safety
  • Support customized applications to meet special industry safety standards

Features:

  • Innovative double-closure design for additional safety
  • High-quality polypropylene material for durability and chemical stability
  • Available in multiple sizes to accommodate various system requirements
  • Quick connect and disconnect functionality for improved operational efficiency
  • Enhanced sealing performance suitable for handling hazardous or sensitive liquids
Brand

Vortextank

Grade

PP & Nylon

Temperture

-30°C to 110°C

Color

Black

Dimension

From 1/2'' to 4''

Type

DC-Type Camlock Coupling
