D-Type PP Camlock Coupling

D-Type PP Camlock Coupling

D-Type PP Camlock Couplings excel in a wide range of fluid handling applications. These heavy-duty camlock couplings offer rugged performance, chemical resistance and ease of use. Ideal for industrial environments, they provide reliable, leak-free connections for efficient fluid transfer.

Descritption:

D-Type PP Camlock Coupling are designed for superior performance in demanding fluid transfer scenarios. These heavy-duty camlock couplings are manufactured from high quality polypropylene, offering exceptional durability and resistance to a wide range of chemicals. The D-Type design ensures a secure, tight seal, making them ideal for camlock coupling applications in industries such as chemical processing and water treatment. Their user-friendly design allows for quick disconnect and reconnect, significantly reducing downtime. Available in a range of Camlock coupling sizes, these couplings can be customised to meet specific Camlock coupling specifications, ensuring optimum performance in different systems.

Dimension:

Inch ΦA ΦB L1
1/2 34.6 25.1 52.5
3/4*1/2 41.5 32.5 54.5
3/4 41.5 32.5 54.5
1 49 37.3 61
1-1/4 58.4 46 70.5
1-1/2 67 54 74
2 82 64 84
2-1/2 94.5 76.5 85.5
3 110 92.3 91
4 144 120 95

Structural Drawing:

D-Type PP Camlock Coupling Drawing
A-type Camlock Coupling Drawing

Function:

  • Provide safe and efficient fluid transfer solutions
  • Suitable for various industrial environments, including chemical processing and water treatment
  • Enable quick connection and disconnection, improving work efficiency
  • Ensure leak-free operations, protecting the environment and operator safety
  • Support customized applications to meet specific industry needs

Features:

  • Robust polypropylene construction for high-intensity applications
  • Excellent chemical resistance suitable for various fluids
  • Ergonomic design for easy operation
  • Reliable sealing performance for safe transfer
  • Available in multiple sizes to meet diverse needs

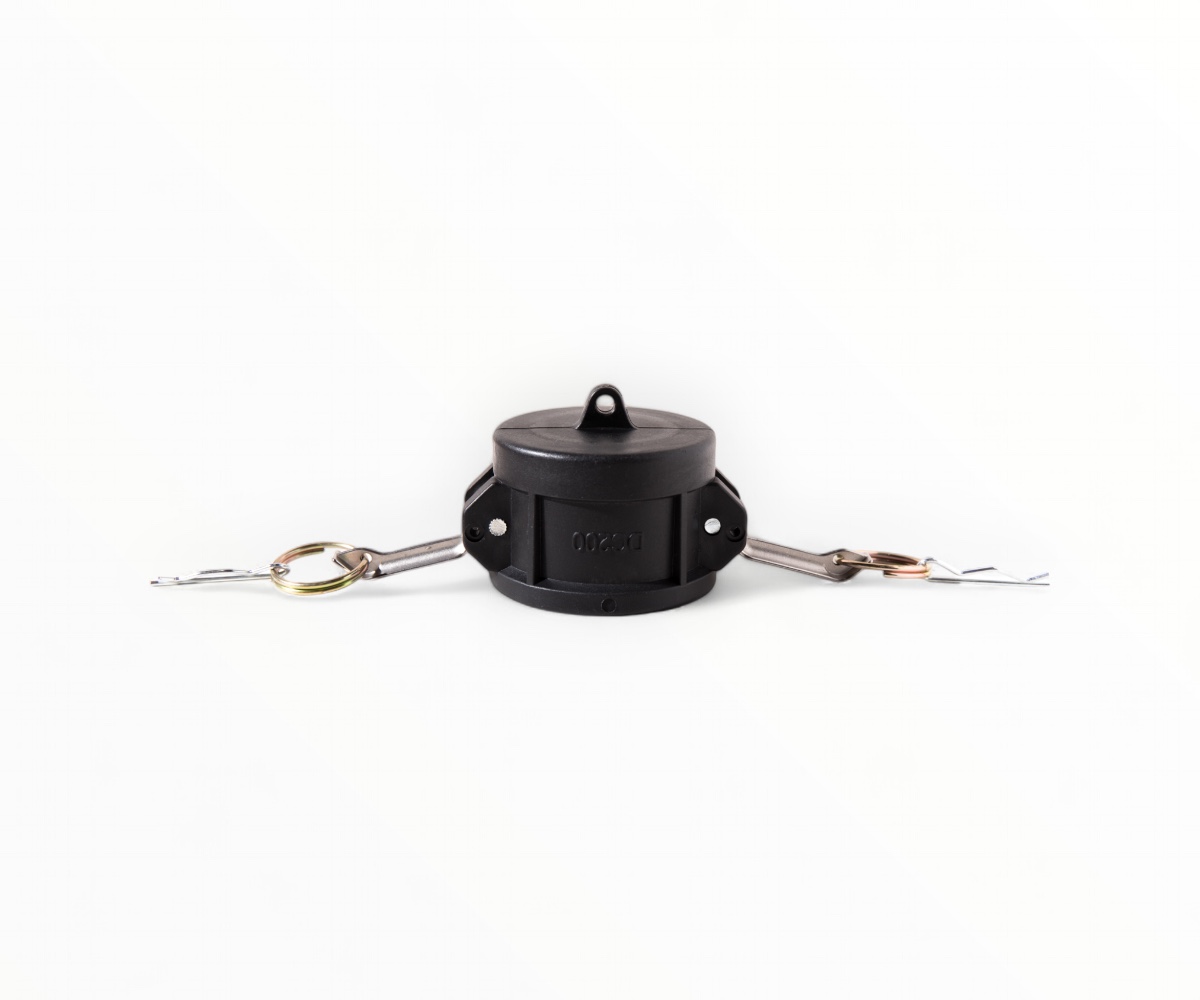

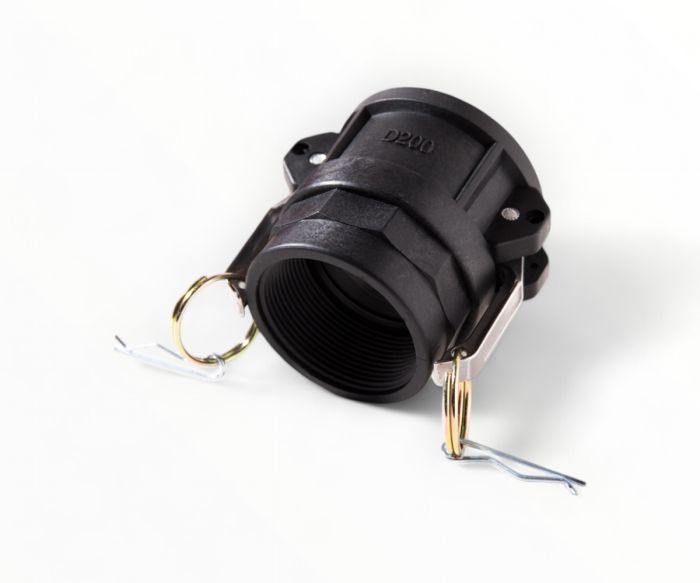

Detail Picture Show

Brand

Vortextank

Grade

PP & Nylon

Temperture

-30°C to 110°C

Color

Black

Dimension

From 1/2'' to 4''

Type

D-Type Camlock Coupling
