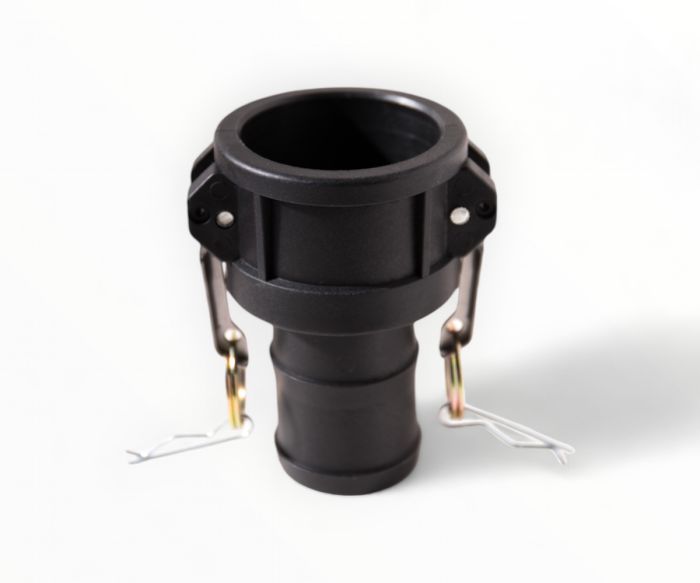

C-Type PP Camlock Couplings
C-Type PP Camlock Couplings provide fast, secure connections for fluid transfer. These plastic camlock couplings combine durability with chemical resistance, making them ideal for a wide range of industrial applications. Easy to use and maintain, they ensure efficient and safe fluid handling.
| Brand | Vortextank |
|---|---|
| Grade | PP & Nylon |
| Temperture | -30°C to 110°C |
| Color | Black |
| Dimension | From 1/2'' to 4'' |
| Type | C-Type Camlock Coupling |
Descritption:
C-Type PP Camlock Couplings are versatile quick release camlock couplings designed for efficient fluid transfer in a variety of industries. Manufactured from high quality polypropylene, these couplings offer excellent chemical resistance and durability. The cam and groove mechanism ensures a secure, leak-free connection that can be easily engaged and disengaged without tools. Their lightweight design doesn’t compromise strength, making them ideal for a range of camlock coupling applications, including chemical transfer and water management. These couplings are available in a range of camlock coupling sizes to meet different camlock coupling specifications, ensuring compatibility with different systems.
Dimension:
| Inch | ΦA | ΦB | ΦD | ΦE | ΦG | L1 |
|---|---|---|---|---|---|---|
| 1/2 | 34.6 | 25.1 | 8 | 13 | 15 | 77.5 |
| 3/4*1/2 | 41.5 | 32.5 | 8 | 13 | 15 | 79 |
| 3/4 | 41.5 | 32.5 | 14.1 | 19 | 21.5 | 86.5 |
| 1 | 49 | 37.3 | 19 | 25 | 27.4 | 98.5 |
| 1-1/4 | 58.4 | 46 | 25.3 | 31.5 | 34.1 | 103 |
| 1-1/2 | 67 | 54 | 30.5 | 38 | 40.5 | 111 |
| 2 | 82 | 64 | 41.5 | 50 | 53.2 | 126 |
| 2-1/2 | 94.5 | 76.5 | 53 | 62.5 | 66 | 136 |
| 3 | 110 | 92.3 | 64.5 | 75.5 | 79.4 | 149 |
| 4 | 144 | 120 | 85 | 100 | 103.2 | 170 |
Structural Drawing:
Function:
- Swift and reliable fluid connections across multiple industries
- Streamlined transfer of both liquids and gases
- Facilitated assembly and disassembly of fluid systems
- Dependable containment for sensitive or valuable substances
- Adaptable for both short-term and long-term installations
- Enable quick and secure fluid connections
- Suitable for various industrial fluid transfer systems
- Provide reliable solutions for handling chemicals and corrosive liquids
- Simplify maintenance and cleaning procedures
- Enhance operational efficiency and safety
Features:
- High-quality polypropylene material for durability and chemical stability
- Quick connect and disconnect without tools
- Lightweight design for easy handling and installation
- Excellent sealing properties to prevent leaks
- Suitable for various fluid transfer applications

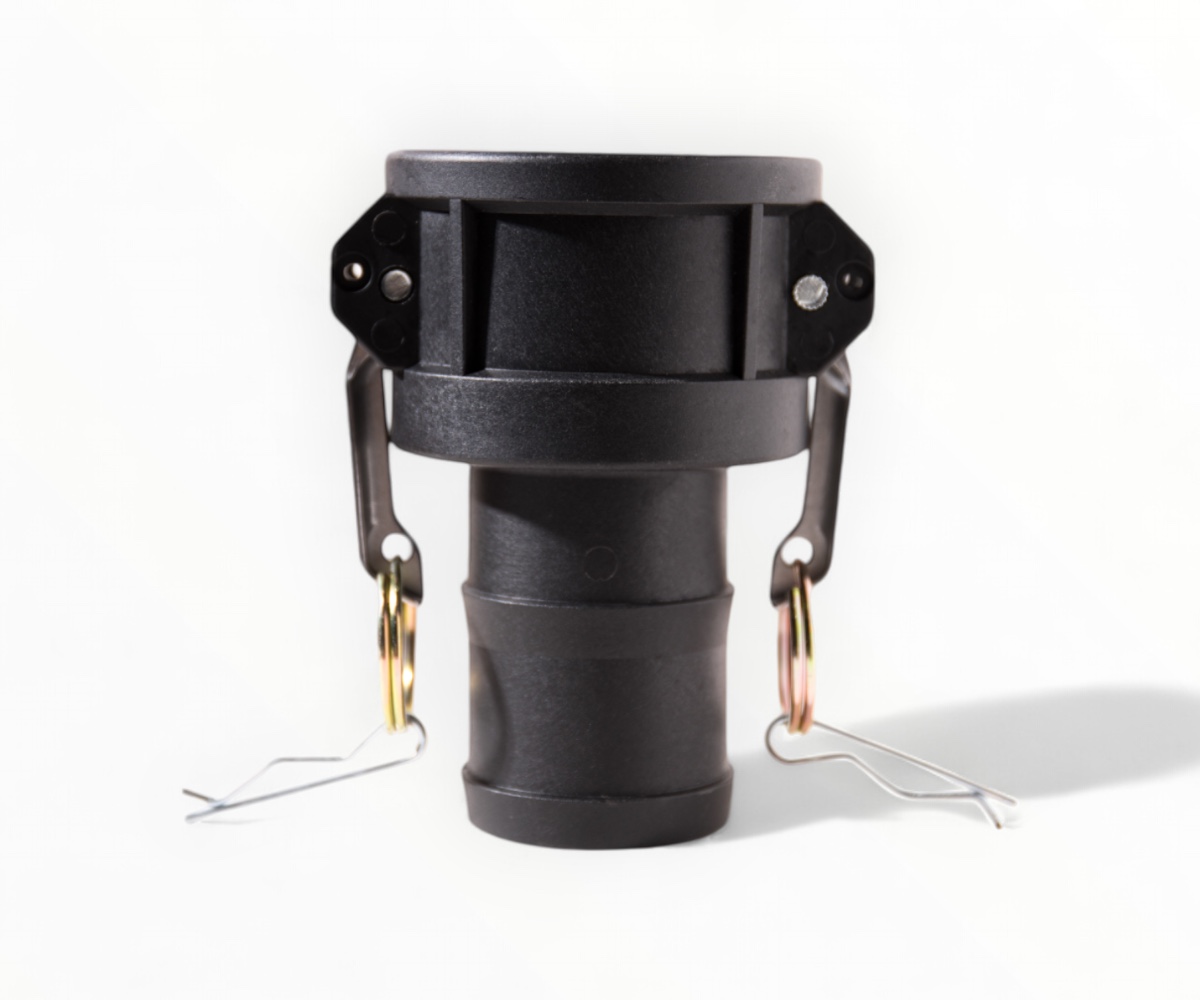

Detail Picture Show
