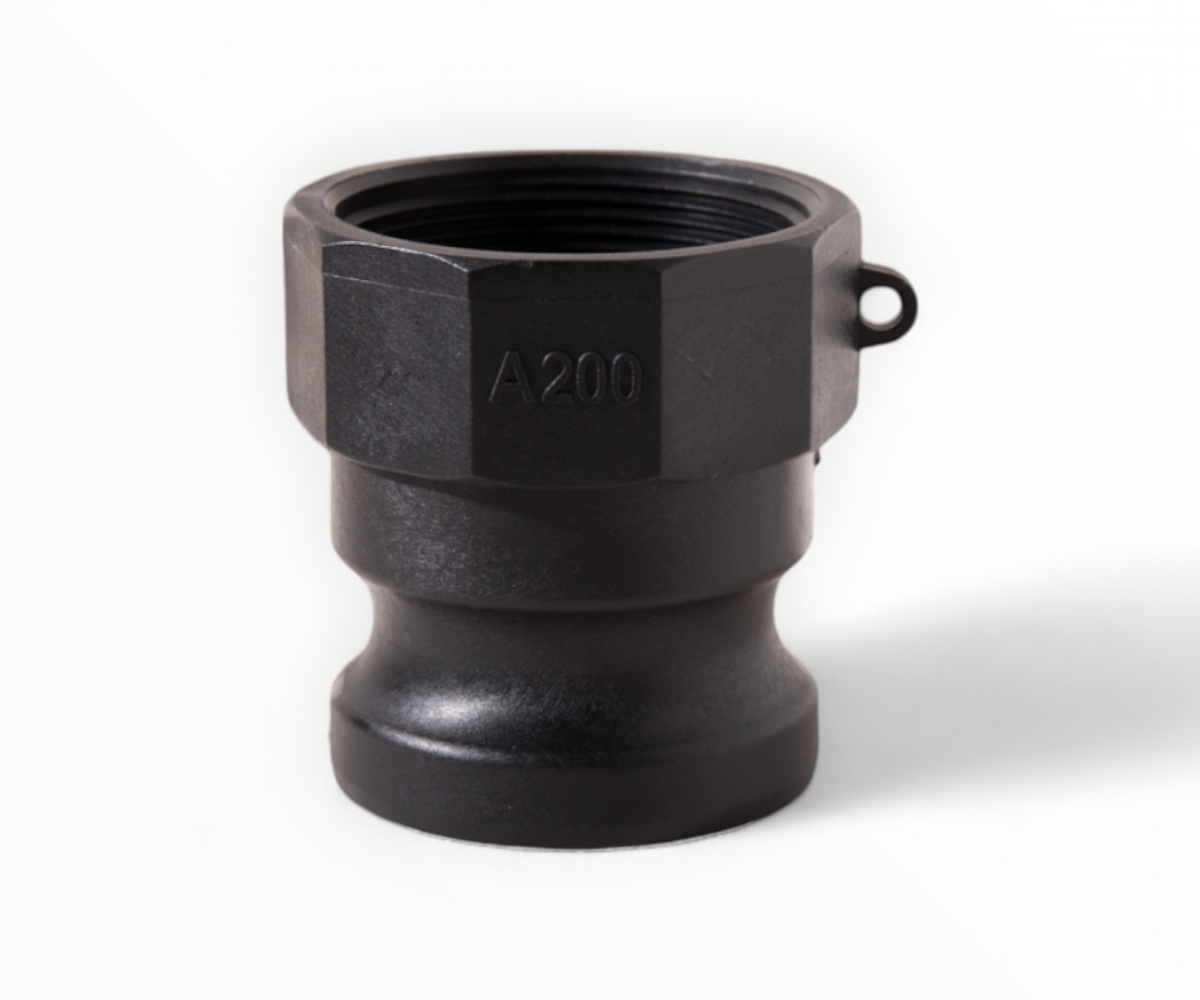

A-Type PP Camlock Couplings
A-Type PP Camlock Couplings are female adapters for quick, secure fluid connections. They are manufactured from durable polypropylene and feature a camlock mechanism. These lightweight, corrosion resistant couplings offer excellent chemical resistance and are suitable for a variety of industrial and agricultural applications where frequent, leak-free connections are required.
| Brand | Vortextank |
|---|---|
| Grade | PP & Nylon |
| Temperture | -30°C to 110°C |
| Color | Black |
| Dimension | From 1/2'' to 4'' |
| Type | A-Type Camlock Coupling |
Descritption:
PP plastic quick disconnect couplings are widely used in agricultural irrigation, fluid transfer and general corrosive media piping systems to provide quick connections. They are integrally moulded from high quality reinforced PP/NY plastic with an attractive appearance and high corrosion resistance. Their design uses the eccentric principle to achieve braking and locking, using high quality nitrile rubber seals that are safe, reliable and easy to use. According to different working conditions, any model of the same specification from B, C, D, DC can be combined with any model from E, F, A, DP to form a complete coupling.
Dimension:
| Inch | ΦA | ΦC | L1 | L2 |
|---|---|---|---|---|
| 1/2 | 14.2 | 24.3 | 29.5 | 20 |
| 3/4*1 | 21.5 | 32 | 26.5 | 20 |
| 3/4 | 21.5 | 32 | 26.5 | 20 |
| 1 | 23.5 | 36.5 | 34 | 22 |
| 1-1/4 | 28 | 45.5 | 40 | 22 |
| 1-1/2 | 36 | 53.4 | 42.5 | 24 |
| 2 | 44 | 63 | 48.5 | 28.5 |
| 2-1/2 | 54 | 75.7 | 50 | 30 |
| 3 | 73 | 91.5 | 52.5 | 32 |
| 4 | 93.5 | 119.5 | 55 | 37 |
Structural Drawing:
Function:
Simple structure, easy to operate, can be quickly connected and disconnected.
Compact size, light weight, with good sealing and interchangeability.
Suitable for various working conditions, widely used in water, oil, gas, and some corrosive liquids and other media.
Application range: Industry, chemical industry, liquefied petroleum gas, vehicle and ship manufacturing equipment, etc.
Features:
- Material: PP+25%GF
- Operating temperature: -30°C to 110°C
- Low product density, economical price
- Excellent electrical insulation performance and chemical stability
- High temperature resistance, aging resistance
- Low melt flow rate, excellent surface smoothness
- Strong resistance to acids, alkalis, and organic solvents

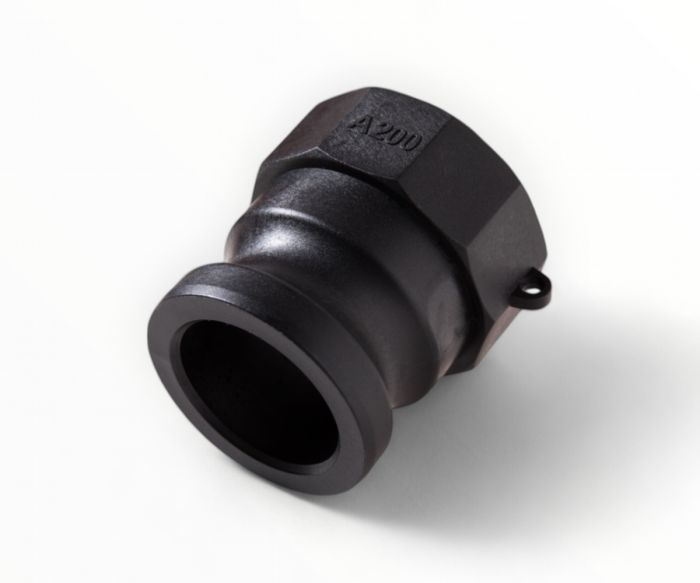

Detail Picture Show
